Application environment

Products can be used as ball valve, butterfly valve, plug valve, air valve and other 90° rotary valve gear box, SLA series for clutch valve drive device is mainly used for pneumatic drive device standby manual drive.


Product Detail

Product Tags

Manual mode of operation

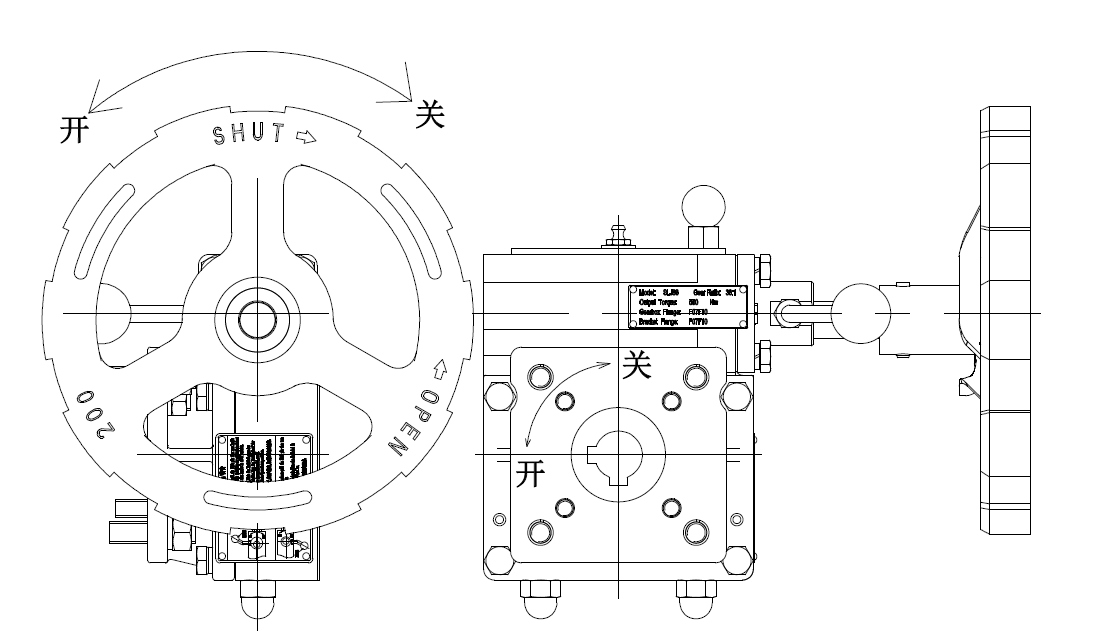

Turn the hand wheel or input shaft to open or close the valve.

product12

Pneumatic drive device operation mode

product121

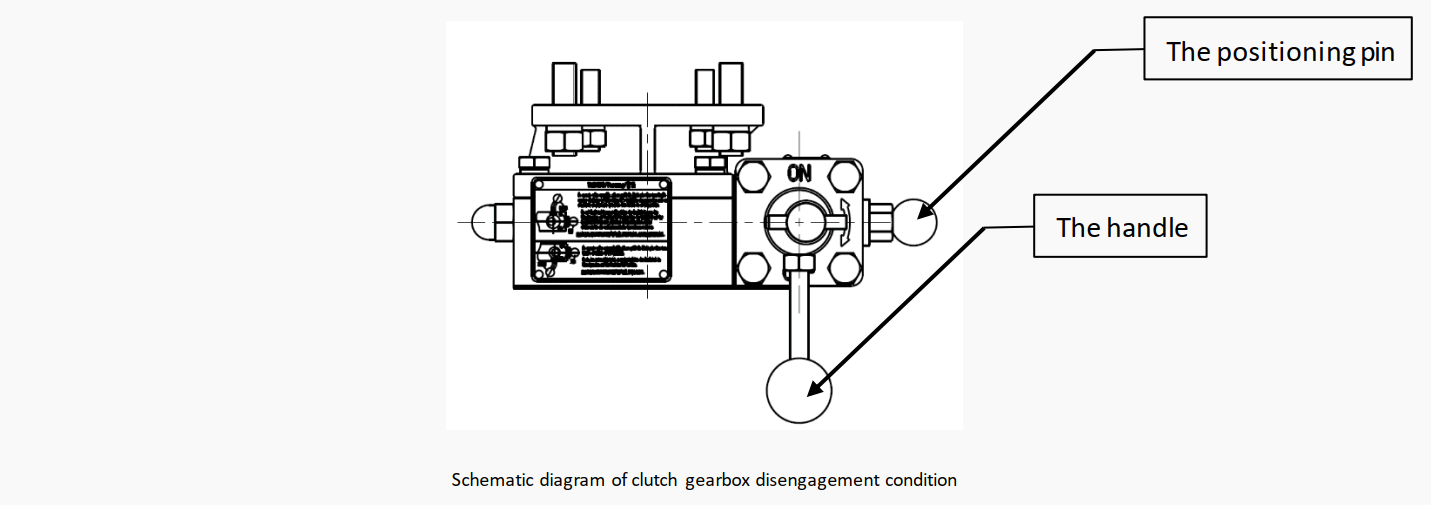

Pull out the positioning pin to turn the handle, that is, the worm gear and worm separation can be realized, and the pneumatic drive device can be operated.

asd

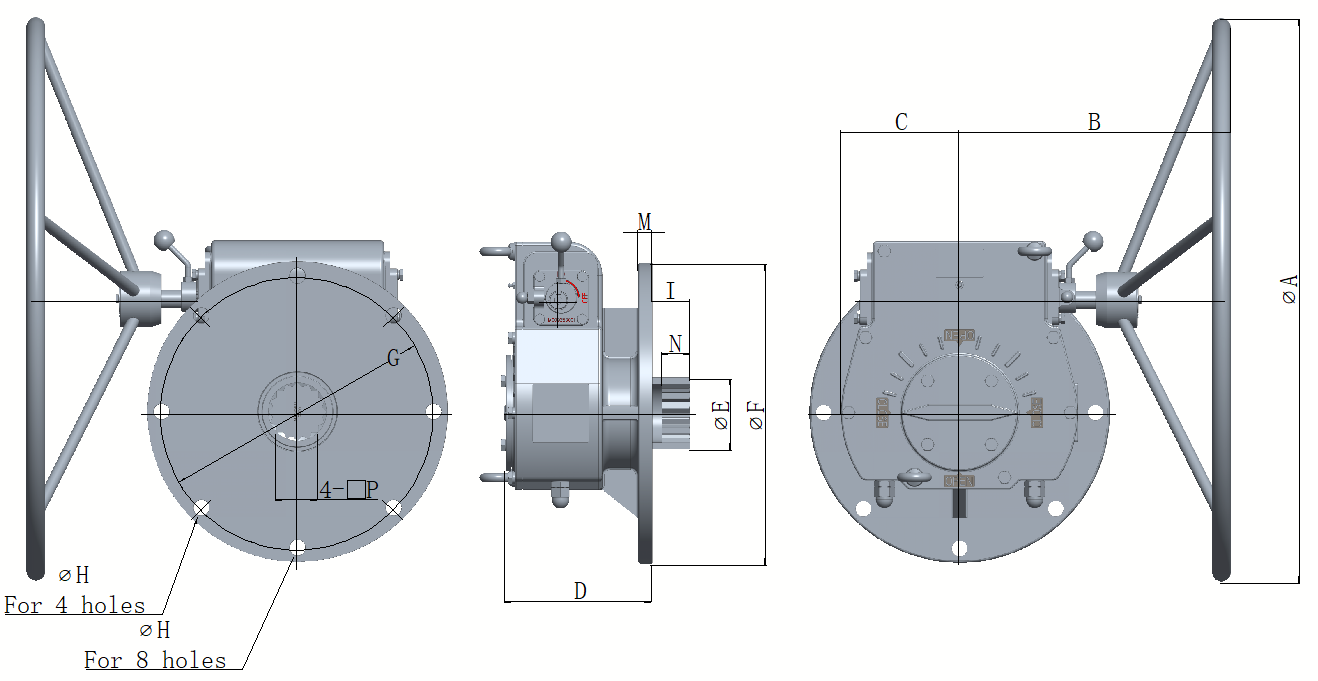

Model

Ratio

Rating input(Nm)

Rating output(Nm)

Efficiency

Hand-wheel(mm)

SLA38

38:1

20

150

0.23

150

30

250

200

65

550

300

SLA54

54:1

78

1000

0.24

350

SLA80

80:1

115

2100

0.24

600

SLA86

86:1

165

3400

0.24

750

SLA270

264:1

120

6800

0.22

500

Part name

Material

Handwheel

Q235A/(GB/T700)

Housing

QT450-10/(GB/T 1348)

Cover

QT450-10/(GB/T 1348)

Worm gear

QT500-7/(GB/T 1348)

Worm shaft

45/(GB/T699)

Indicator

HT250/(GB/T 9439)

Install

SLA series gearbox connection: the bottom flange of the gearbox is connected with the upper flange of the pneumatic drive device, the spline shaft is mounted with the axle hole of the pneumatic drive device, and the flange bolts are tightened.

Storage

1. Short-term storage (less than 6 months), the storage environment should be as far as possible to avoid high temperature, humidity and dust content of the environment storage. Gear boxes should be stored in wooden pallets or wooden cases. Suitable anti-rust oil must be applied to the input shaft, installation flange, valve shaft installation hole and hand wheel hole of the gearbox.
2. Long-term storage (more than 6 months) the storage conditions shall be the same as
Clause 12-1.However, it should be noted that long-term storage should be inspected frequently to check the protection condition. If signs of rust are found, all the products in stock should be re-protected immediately.

This product was developed by Stard Automation in conjunction with Emerson. If you have further questions, you may contact the Stard Automation marketing department.
